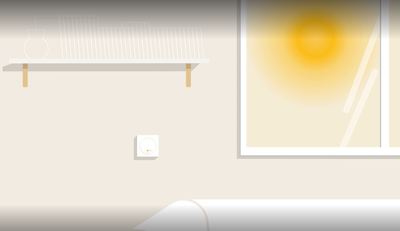

Amy sun protect io measures the indoor temperature every 15 minutes. The onboard intelligence analyses the temperature evolution within the room.

If the temperature increase analysis predicts future overheating discomfort, Amy sun protect io will automatically send a down order to the motorised sun protection.

The closure position will depend on the sun protection type:

• for roller shutters or exterior blinds, the closure will be +80% compared to current position,
• for external venetian blinds, the slats will be all down with an angle of 45%,

to keep visual comfort with natural light coming in the room.

Even if the Amy sun protect io automatism has been developed to avoid unwanted activations, it is better to deactivate Amy sun protect io automatism in winter period or whenever you don’t need it.

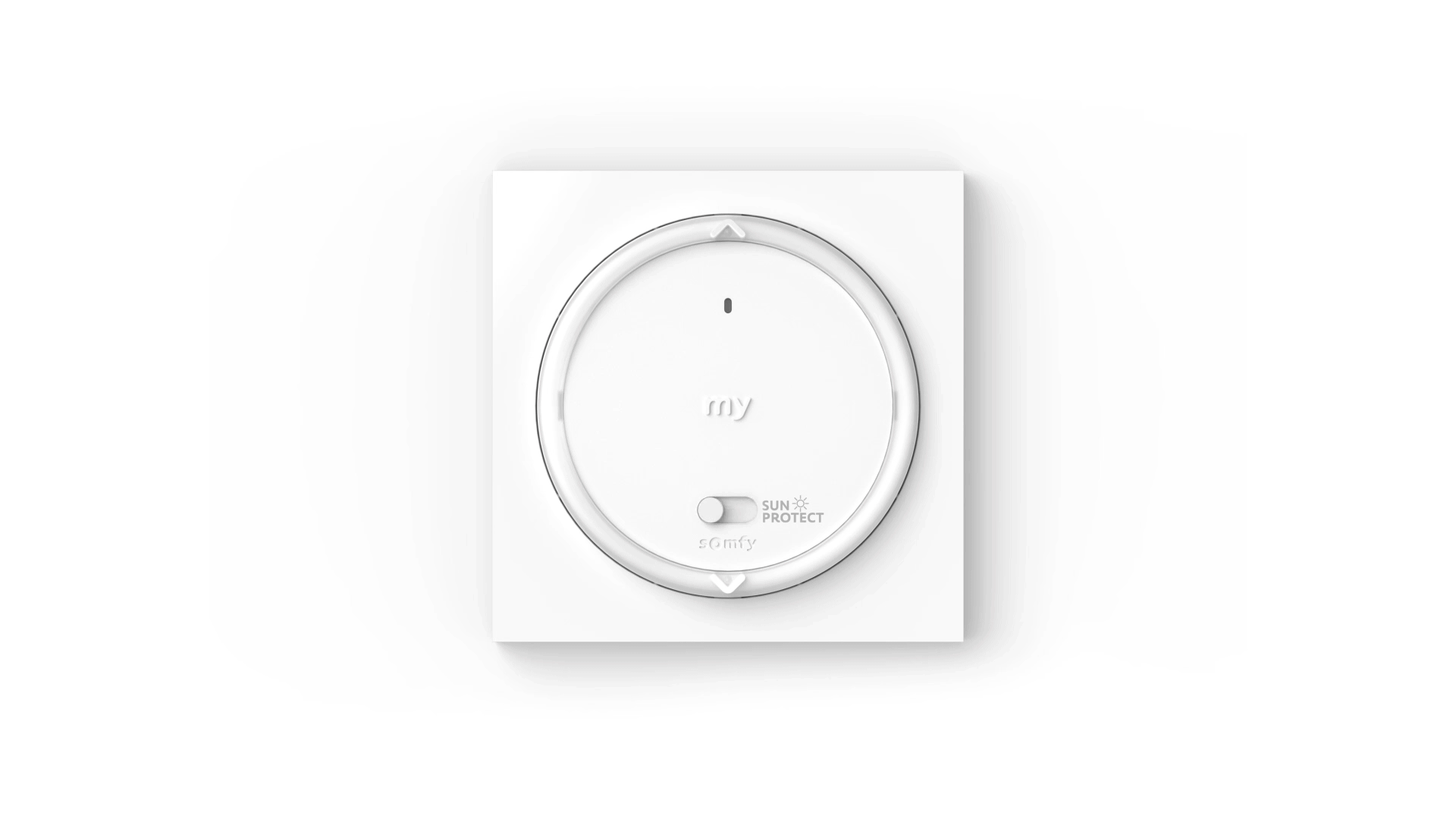

To deactivate Amy sun protect io, it is simple: You just have to slide the toggle to the left.

Night cooling:

• During heatwaves, Amy sun protect io automation will operate even better if you can reduce your room / home temperature during the night.

Amy sun protect io installed in a house equipped with air-conditioning:

• Amy sun protect io will allow you to delay the use of your air-conditioning as you are maintaining a comfortable indoor temperature thanks to Amy sun protect io.
• If you want to keep your air-conditioning as back up, use Amy sun protect io setting coherent with your air conditioning temperature activation.

E.g.: Program Amy sun protect io temperature at 25°C and your air-conditioning temperature above 25°C like 26°C.

Either the sun protection lower too early, I can handle more “heat” or too late, I need the sun protection to lower earlier.

Amy sun protect io temperature threshold can be adjusted.

There are 5 sensitivity levels. By default, the Amy sun protect io is set on sensitivity level 3. You can reduce it to get the sun protection lower earlier for a cooler temperature or increase it to get the sun protection lower later as you can handle more “heat”. The procedure to modify the sensitivity threshold is as follow:

Long press 7s on T°/MODE button until orange LED feedback (green+red) to activate setting mode

Then move to front panel and short press on UP or DOWN button to adjust the setting to the new wished treshold

There are 5 different sensitivity levels that you can select using the UP and DOWN buttons based on the desired maximum target temperature that you do not want to exceed in your room.

The number of flashes of the green indicator light indicates the selected level.

Long press 7s on T°/MODE button until orange LED feedback (green+red) to go out of setting mode (or wait timeout of 10s)

To reach the best performances of the sensor (accuracy and repeatability), favor wall mounting. Temperature measurement will be more consistent with temperature felt. To ensure a good temperature measurement, please follow the positioning recommendations:

• Avoid direct sun exposure,
• Move away from heat/cold sources (ideally 1m from radiator, air conditioning, wood burner, …),
• Move away from direct airflow (at least 25cm away of an opening),
• Avoid enclosed area, where the product will not be influenced by the ambient air.
